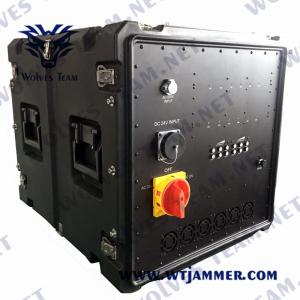

1400W 14bands DDS Multi-Band Cover 20-6000Mhz Vehicle IED Bomb Jammer- WT802814DM
Product Description
Now protecting military and VIP convoys from the threat of Remote Control Improvised Explosive Devices (RCIEDs)-road-side bombs have become a challenge and task in many parts of the world.
We recommend DDS High Power Full Band Vehicle Military Convoy Protection Roof Mounted Jammer system, It can implement the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.
It can cover, continuously and simultaneously, all the RF communication Frequencies 20MHz~6000MHz (or 20-3600MHz) which are most commonly used by terrorists to detonate road-side bombs (RCIEDs).Adopting the latest jamming technologies, the features ultra-high RF transmission power of 1300 watt, making a bigger shielding range around the vehicle. Beyond the installation of the convoy protection device itself, the vehicle is customized with special RF protection for full protection of the driver and passengers. System management, including activation and control and operation is carried out through a wired remote control unit installed covertly inside the driver’s console unit.
Once the system is activated, it transmits unique noise signal which creates "Firewall" between the transmitter (terrorist) and its receiver (explosive device), so can prevent the remote control bomb from the terrorists.
There is absolutely no better way to defend your VIP from the threat of radio-activated bombs.
Advantages and Features
- Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.
- Heat sink designing combing with the fans to make system in a cooling status.
- Special technology to prevent interference between each frequency band.
- Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
- Frequency bands and output power selectable.
- Each frequency band controlled by independent RF ON/OFF switches.
- Power of each frequency band can be adjustable independently.
- Circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
- Antenna type options, directional or Omni-directional antennas option.
- Easy operation and installation.
- Keep for upgrade module installation.
- Working 24 hours/365days continuously.
Technical Specifications
14 bands for option: The frequencies can be from 20-6000MHZ
| Output Interface | RF Frequency Band(MHz) | Application | RF Output Power (Watt) |
| CH1 | 20-350MHz DDS | RF 20-350 | 100W |
| CH2 | 350-500MHz | RF 350-500 | 100W |
| CH3 | 500-1000MHz DDS | RF 500-1000 | 100W |
| CH4 | 850-960MHz | GSM850/900 | 100W |
| CH5 | 1805-1920MHz | DCS1800 | 100W |
| CH6 | 2110-2170MHz | 3G | 100W |
| CH7 | 2300-2400Mhz | 4G | 100W |
| CH8 | 2500-2690Mhz | 4G | 100W |
| CH9 | 3400-3600MHz | 5G | 100W |
| CH10 | 3600-3800MHz | 5G | 100W |
| CH11 | 2400-2500 MHz | WIFI & Bluetooth | 100W |
| CH12 | 5700-5800 MHz | WIFI 5.8G 25W | 100W |
| CH13 | 1170-1230MHz | GPSL2.L5 | 100W |
| CH14 | 1560-1625MHz | GPSL1 | 100W |
| Option | 20-6000MHz | Option | Option |
| Total RF Power | 1400Watt |
| Power supply | AC230V |
| Shielding area | 100-1000m @ according to signal density of mobile network |
| Jammer Module Number | 14 |
| Cooling System | Systematic Smart Cooling System |
| System Protection | VSWR, Over-voltage, Over-current |
| Jamming Source | PLL Source Technology |
| Remote Control (Option) | Full System Operation Control |
| Antenna Type | High Gain Omnidirectional Antennas |
| Number of Antennas | 4 pcs (Dual band is 2pcs, Three band is 2 pcs) |
| Power consumption: | 5400W |
| Power Supply Source (Option) | Additional AC Alternator ( 5400W) or Additional DC Generator ( +24 VDC/220A ) |
| Weight: | 48.00Kg |
| Size (length × wind × high): | 550×500×350mm |
| Humidity: | 30%-95% |
| Running Temperature: | -20 to +60 Celsius Degree |
Applicable Area:
High quality jammers widely use in Military Units, Prison, Police, Bomb Disposal and Security Services.
It can also be used in places like Prison, Gas Stations, Guard, Schools, Churches, Invigilate Meeting Room, Library, Hospitals, Theater, Class Room and other important places and situations.
FAQ:
1,Does jammer interfere the other electronic equipment to work in normal condition?
* No. Because the electromagnetic signal sent by jammer are totally used in the band that regulated by government and just have interception effect to cell phone communication.
2,The shell of jammer will become hot after working for some times. Does the long working time will damage the machine itself?
* It is very normal. When designing, we are thinking of taking use of the conductivity of metal shell to help the heat sinking during our designation. By this way, the machine can be kept in good working condition for long time.
3. Why choose us?
* Passionate, experienced and highly-educated R & D and sales team;
* Reasonable price and reliable products, skillful and careful assembly;
* Strict quality assurance and quick aftersales service;
* Lifetime technical support, can come with customized setting.
